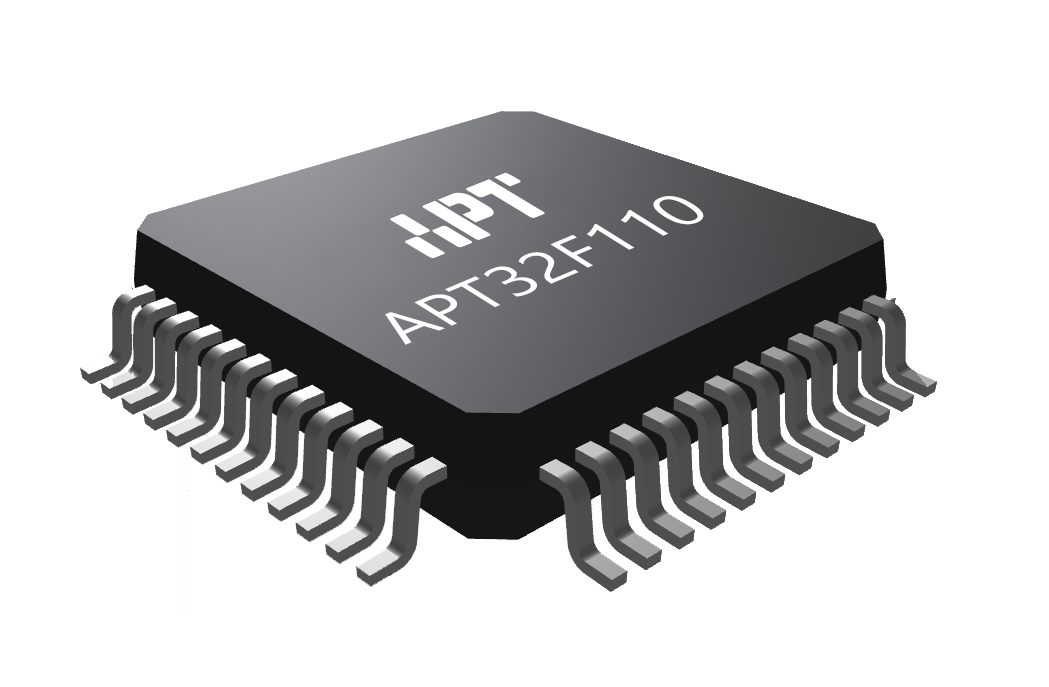

APT32F110由愛普特微電子推出的基于RISC CPU內核開發的32位高性能高可靠性單片機。 APT32F110系列單片機面向的應用為家電以及便攜設備等。
| Part NO. | Op.Volt | Temp | Freq | Pin | GPIO | Flash | RAM | Dflash | HWD | DMA | IWDT | WWDT | BT | CNTA | RTC | LPT | EPT | GPTA | GPTB | UART | USART | IIC | SPI | HSIO | SIO | PWM | ADC | CMP | LED Driver | Deep Sleep | Shut Down | PACKAGE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| APT32F1101C8T6 | 1.8v~5.5v | -40~85 | 48MHz | 48 | 44 | 64k | 8k+0.25K | 2k | √ | 4ch | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 1 | 1 | 1 | 1 | 10 | 16bitx18ch | 12bitx19ch | 2 | 10comx8seg | 10uA | 1.5uA | LQFP48 |
| APT32F1101C8T8 | 1.8v~5.5v | -40~105 | 48MHz | 48 | 44 | 64k | 8k+0.25K | 2k | √ | 4ch | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 1 | 1 | 1 | 1 | 10 | 16bitx18ch | 12bitx19ch | 2 | 10comx8seg | 10uA | 1.5uA | LQFP48 |
| APT32F1101C8U6 | 1.8v~5.5v | -40~85 | 48MHz | 48 | 44 | 64k | 8k+0.25K | 2k | √ | 4ch | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 1 | 1 | 1 | 1 | 10 | 16bitx18ch | 12bitx19ch | 2 | 10comx8seg | 10uA | 1.5uA | QFN48 |
| APT32F1101C8U8 | 1.8v~5.5v | -40~105 | 48MHz | 48 | 44 | 64k | 8k+0.25K | 2k | √ | 4ch | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 1 | 1 | 1 | 1 | 10 | 16bitx18ch | 12bitx19ch | 2 | 10comx8seg | 10uA | 1.5uA | QFN48 |
| Part NO. | Op.Volt | Temp | Freq | Pin | GPIO | Flash | RAM | Dflash | HWD | DMA | IWDT | WWDT | BT | CNTA | RTC | LPT | EPT | GPTA | GPTB | UART | USART | IIC | SPI | SIO | HSIO | PWM | ADC | CMP | Touch | LED Driver | LCD | Deep Sleep | Shut Down | PACKAGE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| APT32F1103C8T6 | 1.8v~5.5v | -40~85 | 48MHz | 48 | 44 | 64k | 8k+0.25K | 2k | √ | 4ch | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 1 | 1 | 1 | 1 | 10 | 16bitx18ch | 12bitx19ch | 2 | 32ch | 10comx8seg | 8comx26seg4comx30seg | 10uA | 1.5uA | LQFP48 |
| APT32F1103C8T8 | 1.8v~5.5v | -40~105 | 48MHz | 48 | 44 | 64k | 8k+0.25K | 2k | √ | 4ch | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 1 | 1 | 1 | 1 | 10 | 16bitx18ch | 12bitx19ch | 2 | 32ch | 10comx8seg | 8comx26seg4comx30seg | 10uA | 1.5uA | LQFP48 |
| APT32F1103C8U6 | 1.8v~5.5v | -40~85 | 48MHz | 48 | 44 | 64k | 8k+0.25K | 2k | √ | 4ch | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 1 | 1 | 1 | 1 | 10 | 16bitx18ch | 12bitx19ch | 2 | 32ch | 10comx8seg | 8comx26seg4comx30seg | 10uA | 1.5uA | QFN48 |
| APT32F1103C8U8 | 1.8v~5.5v | -40~105 | 48MHz | 48 | 44 | 64k | 8k+0.25K | 2k | √ | 4ch | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 1 | 1 | 1 | 1 | 10 | 16bitx18ch | 12bitx19ch | 2 | 32ch | 10comx8seg | 8comx26seg4comx30seg | 10uA | 1.5uA | QFN48 |
| APT32F1103S8T6 | 1.8v~5.5v | -40~85 | 48MHz | 44 | 41 | 64k | 8k+0.25K | 2k | √ | 4ch | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 1 | 1 | 1 | 1 | 10 | 16bitx18ch | 12bitx17ch | 2 | 30ch | 10comx8seg | 8comx24seg4comx28seg | 10uA | 1.5uA | LQFP44 |
| APT32F1103S8T8 | 1.8v~5.5v | -40~105 | 48MHz | 44 | 41 | 64k | 8k+0.25K | 2k | √ | 4ch | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 1 | 1 | 1 | 1 | 10 | 16bitx18ch | 12bitx17ch | 2 | 30ch | 10comx8seg | 8comx24seg4comx28seg | 10uA | 1.5uA | LQFP44 |
| APT32F1103K8T6 | 1.8v~5.5v | -40~85 | 48MHz | 32 | 29 | 64k | 8k+0.25K | 2k | √ | 4ch | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 1 | 1 | 1 | 1 | 6 | 16bitx18ch | 12bitx12ch | 2 | 20ch | 6comx8seg | 8comx15seg4comx19seg | 10uA | 1.5uA | LQFP32 |
| APT32F1103K8T8 | 1.8v~5.5v | -40~105 | 48MHz | 32 | 29 | 64k | 8k+0.25K | 2k | √ | 4ch | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 1 | 1 | 1 | 1 | 6 | 16bitx18ch | 12bitx12ch | 2 | 20ch | 6comx8seg | 8comx15seg4comx19seg | 10uA | 1.5uA | LQFP32 |
| APT32F1103K8U6 | 1.8v~5.5v | -40~85 | 48MHz | 32 | 29 | 64k | 8k+0.25K | 2k | √ | 4ch | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 1 | 1 | 1 | 1 | 6 | 16bitx18ch | 12bitx12ch | 2 | 20ch | 6comx8seg | 8comx15seg4comx19seg | 10uA | 1.5uA | QFN32 |
| APT32F1103K8U8 | 1.8v~5.5v | -40~105 | 48MHz | 32 | 29 | 64k | 8k+0.25K | 2k | √ | 4ch | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 1 | 1 | 1 | 1 | 6 | 16bitx18ch | 12bitx12ch | 2 | 20ch | 6comx8seg | 8comX15seg4comx19seg | 10uA | 1.5uA | QFN32 |
| Part NO. | Op.Volt | Temp | Freq | Pin | GPIO | Flash | RAM | Dflash | HWD | DMA | IWDT | WWDT | BT | CNTA | RTC | LPT | EPT | GPTA | GPTB | UART | USART | IIC | SPI | SIO | HSIO | PWM | ADC | CMP | LCD | Deep Sleep | Shut Down | PACKAGE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| APT32F1104C8T6 | 1.8v~5.5v | -40~85 | 48MHz | 48 | 44 | 64k | 8k+0.25k | 2k | √ | 4ch | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 1 | 1 | 1 | 1 | 10 | 16bitx18ch | 12bitx19ch | 2 | 8comx26seg 4comx30seg | 10uA | 1.5uA | LQFP48 |
| APT32F1104C8T8 | 1.8v~5.5v | -40~105 | 48MHz | 48 | 44 | 64k | 8k+0.25k | 2k | √ | 4ch | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 1 | 1 | 1 | 1 | 10 | 16bitx18ch | 12bitx19ch | 2 | 8comx26seg 4comx30seg | 10uA | 1.5uA | LQFP48 |
